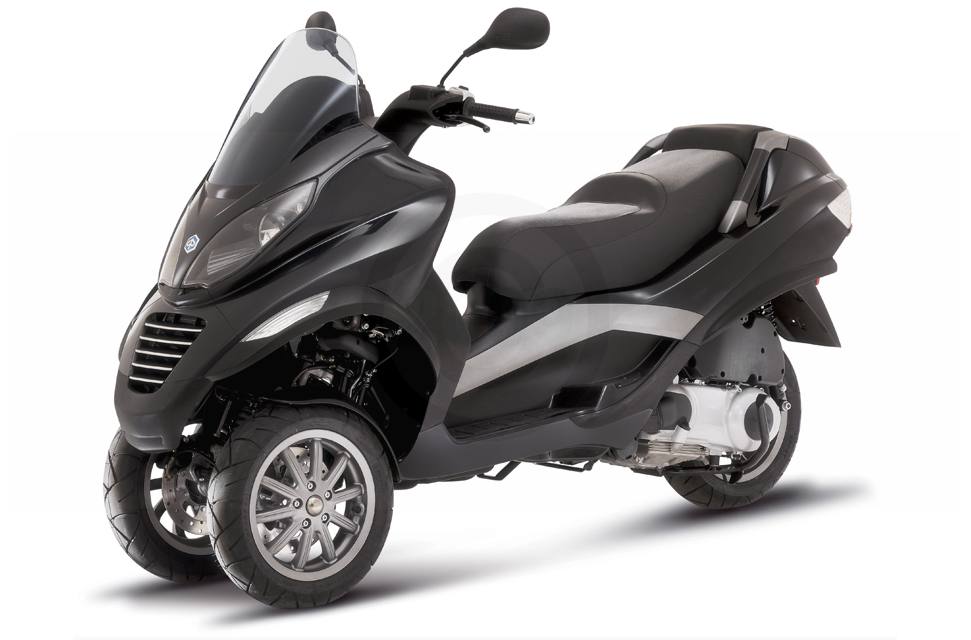

2009 Piaggio MP3 250
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Single cylinder, four-stroke Piaggio Master engine
  • Electro-hydraulic suspension locking system
  • 40-degree lean angle for ultimate maneuverability
  • Super large under seat storage
  • 3 disc brakes, 20% more stopping power
Specifications
  • Engine Type: Single-cylinder QUASAR, four-stroke, four-valve, electronic injection, catalysed
  • Cylinder Capacity: 244.3 cc
  • Bore x Stroke: 2.8” x 2.4“ (72 mm x 60 mm)
  • Max Power at Shaft: 22.5 hp (16.5 Kw) at 8,250 rpm
  • Max Torque: 21 Nm at 6,750 rpm
  • Max Speed: 77 mph (125 km/h)
  • Fuel / Tank Capacity: Unleaded / 3.2 gal. (12 l)
  • Gas Mileage: 60 mpg - 65 mpg
  • Cooling System: Liquid
  • Lubrication: Wet sump, 1,000 cc capacity, chain-driven lobe pump; intake and delivery filters
  • Ignition: Port Injected Alfa/n type with closed loop system, Lambda sensor in exhaust pipe and three-way
  • Chassis: Twin cradle: tubes in high tensile steel
  • Front Suspension: Parallelogram composed of four aluminum arms supporting two steering tubes, cantilevered suspension – Travel: 85 mm
  • Rear Suspension: Two dual effect hydraulic shock absorbers and adjustable spring preload – Travel: 110 mm
  • Front Tire: 120 / 70, 12”
  • Rear Tire: 130 / 70, 12”
  • Front Brake: Two stainless steel discs, 240 mm and floating caliper with two pistons, 30 mm
  • Rear Brake: Stainless steel disc, 240 mm and caliper with opposite pistons, 30 mm
  • Length / Width: 84” (2,130 mm) / 29.3” (745 mm)
  • Wheelbase: 58.6” (1,490 mm)
  • Seat Height: 30.7” (780 mm)
  • Dry Weight: 450 lbs (204 kg)
  • Type-Approval: EPA and CARB
Accessories
  • Covers
  • Helmets
  • Security
  • Top Cases
  • Windshield
  • Tom Tom Rider Satellite Navigator Fixing Kit
Warranty
  • Limited: 12 months, without mileage restriction
  • Extended: 2 year factory

Specifications

Engine
Engine Type Single-cylinder QUASAR, four-stroke, four-valve, electronic injection, catalysed
Displacement 244.3 cc
Bore and Stroke 2.8 in. x 2.4“ in. (72 mm x 60 mm)
Cooling Liquid
Ignition Port Injected Alfa/n type with closed loop system, Lambda sensor in exhaust pipe and three-way double catalytic converter
Chassis
Front Suspension Parallelogram composed of four aluminum arms supporting two steering tubes, cantilevered suspension – Travel 85 mm. Electro-hydraulic suspension locking system.
Front Brakes Two stainless steel discs, 240 mm and floating caliper with two pistons, 30 mm
Front Tire Tubeless 120 / 70, 12 in.
Rear Suspension Two dual effect hydraulic shock absorbers and adjustable spring preload – Travel 110 mm
Rear Brakes Stainless steel disc, 240 mm and caliper with opposite pistons, 30 mm
Rear Tire Tubeless 130 / 70, 12 in.
Storage Super large storage under seat, Optional: Top case
Dimensions
Dry Weight 450 lbs. (204 kg)
Fuel Capacity 3.2 gal. (12 l)
Wheelbase 58.6 in. (1,490 mm)
Seat Height 30.7 in. (780 mm)
General
Colors Graphite Black, Cortina Gray
Warranty 12 month limited, 2 year factory

Compare Models

 Print








Year 2009
Manufacturer Piaggio
Model MP3 250
Style Touring
MSRP* $7,199.00
Chassis
Front Suspension Parallelogram composed of four aluminum arms supporting two steering tubes, cantilevered suspension – Travel 85 mm. Electro-hydraulic suspension locking system.
Front Brakes Two stainless steel discs, 240 mm and floating caliper with two pistons, 30 mm
Front Tire Tubeless 120 / 70, 12 in.
Rear Suspension Two dual effect hydraulic shock absorbers and adjustable spring preload – Travel 110 mm
Rear Brakes Stainless steel disc, 240 mm and caliper with opposite pistons, 30 mm
Rear Tire Tubeless 130 / 70, 12 in.
Storage Super large storage under seat, Optional: Top case
Dimensions
Dry Weight 450 lbs. (204 kg)
Fuel Capacity 3.2 gal. (12 l)
Wheelbase 58.6 in. (1,490 mm)
Seat Height 30.7 in. (780 mm)
Curb Weight
Engine
Engine Type Single-cylinder QUASAR, four-stroke, four-valve, electronic injection, catalysed
Displacement 244.3 cc
Bore and Stroke 2.8 in. x 2.4“ in. (72 mm x 60 mm)
Cooling Liquid
Compression Ratio
Fuel System
Ignition Port Injected Alfa/n type with closed loop system, Lambda sensor in exhaust pipe and three-way double catalytic converter
General
Speedometer
Tachometer
Odometer
Colors Graphite Black, Cortina Gray
Warranty 12 month limited, 2 year factory
Transmission
Transmission
Drive System
