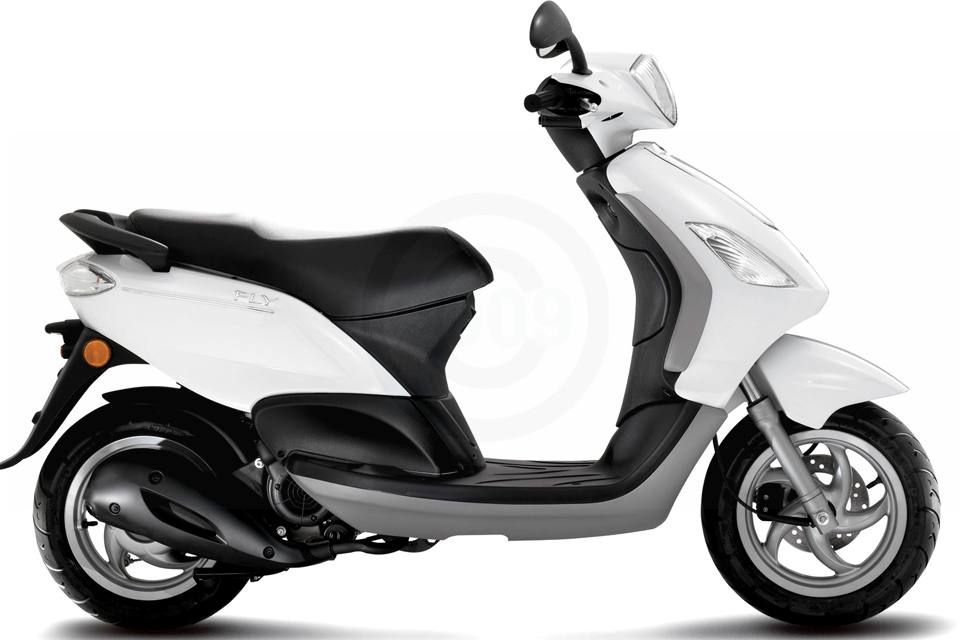

2009 Piaggio Fly 150
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Single cylinder, four-stroke Piaggio Leader engine
  • Wide, streamlined front shield – aerodynamic and protective
  • Grab rail, for the passanger, rounds off the design
  • Low, wide alloy wheel (12”) for maneuverability and stability
  • Front disc brakes
  • Underseat storage for helmet
  • Adjustable hydraulic single shock absorber
Specifications
  • Engine Type: Single cylinder, four-stroke Piaggio LEADER (Low Emissions ADvanced Engine Range)
  • Cylinder Capacity: 150 cc
  • Bore x Stroke: 2.5” x 1.9” (62.6 mm x 48.6 mm)
  • Max Power at Shaft: 8.5 kW at 7,750 rpm (11.6 bhp)
  • Max Torque: 11.5 Nm at 6,000 rpm
  • Max Speed: 61 mph (98 Km/h)
  • Fuel / Tank Capacity: Unleaded / 1.9 gal. (7.2 l)
  • Gas Mileage: 70 mpg - 75 mpg
  • Distribution: Single overhead camshaft (SOHC) with two valves
  • Cooling System: Forced air
  • Lubrication: Wet sump
  • Ignition: Electronic
  • Gears: CVT (Continuously Variable Transmission) and torque server
  • Clutch: Dry automatic centrifugal type
  • Chassis: Tube type
  • Front Suspension: Telescopic hydraulic forks, 32 mm
  • Rear Suspension: Hydraulic single shock absorber, spring pre-load adjustable to four positions
  • Front Tire: Tubeless 120 / 70, 12”
  • Rear Tire: Tubeless 120 / 70, 12”
  • Front Brake: Disc 200 mm, floating caliper with two pistons
  • Rear Brake: Drum 140 mm
  • Length/Width: 73.6” (1,870 mm)/28.9” (735 mm)
  • Wheelbase: 52.4” (1,330 mm)
  • Seat Height: 30.9” (785 mm)
  • Dry Weight: 247 lbs. (112 kg)
  • Type-Approval: EPA and CARB
  • Colors: Excalibur Gray, Optic White
Accessories
  • Covers
  • Helmets
  • Security
  • Top Cases
  • Windshields
Warranty
  • Limited Warranty: 12 months, without mileage restriction
  • Extended Warranty: 2 year factory

Specifications

Engine
Engine Type Single cylinder, four-stroke Piaggio LEADER (Low Emissions ADvanced Engine Range)
Displacement 150 cc
Bore and Stroke 2.5 in. x 1.9 in. (62.6 mm x 48.6 mm)
Cooling Forced air
Ignition Electronic
Chassis
Front Suspension Telescopic hydraulic forks, 32 mm
Front Brakes Disc 200 mm, floating caliper with two pistons
Front Tire Tubeless 120 / 70, 12 in.
Rear Suspension Hydraulic single shock absorber, spring pre-load adjustable to four positions
Rear Brakes Drum 140 mm
Rear Tire Tubeless 120 / 70, 12 in.
Storage Underseat Helmet storage, Optional: Top Case
Dimensions
Dry Weight 247 lbs. (112 kg)
Fuel Capacity Unleaded / 1.9 gal. (7.2 l)
Wheelbase 52.4 in. (1,330 mm)
Seat Height 30.9 in. (785 mm)
Transmission
Transmission Dry automatic centrifugal type
General
Colors Excalibur Gray, Optic White
Warranty 6 month limited, 2 year factory

Compare Models

 Print








Year 2009
Manufacturer Piaggio
Model Fly 150
Style Standard
MSRP* $2,899.00
Chassis
Front Suspension Telescopic hydraulic forks, 32 mm
Front Brakes Disc 200 mm, floating caliper with two pistons
Front Tire Tubeless 120 / 70, 12 in.
Rear Suspension Hydraulic single shock absorber, spring pre-load adjustable to four positions
Rear Brakes Drum 140 mm
Rear Tire Tubeless 120 / 70, 12 in.
Storage Underseat Helmet storage, Optional: Top Case
Dimensions
Dry Weight 247 lbs. (112 kg)
Fuel Capacity Unleaded / 1.9 gal. (7.2 l)
Wheelbase 52.4 in. (1,330 mm)
Seat Height 30.9 in. (785 mm)
Curb Weight
Engine
Engine Type Single cylinder, four-stroke Piaggio LEADER (Low Emissions ADvanced Engine Range)
Displacement 150 cc
Bore and Stroke 2.5 in. x 1.9 in. (62.6 mm x 48.6 mm)
Cooling Forced air
Compression Ratio
Fuel System
Ignition Electronic
General
Speedometer
Tachometer
Odometer
Colors Excalibur Gray, Optic White
Warranty 6 month limited, 2 year factory
Transmission
Transmission Dry automatic centrifugal type
Drive System

Current Promotions

There are currently no promotions available for this product.
